Visual Signals

SCC SemiStat Status Indicator

  • Available in 24VAC/VDC
  • Tri- or quad-color models
  • Chrome finish
  • 100,000 hour vibration resistant LED lamps
  • Integrated sounder
  • Surface mount
  • Indoor use only

Federal Signal introduces the SemiStat® Status Indicator. Designed to meet the needs of the OEM market, the SemiStat is an attractive, easy-to-install and economical status indicator.

SemiStats operate on 24VAC or 24VDC. The snap fit housing cover and a standard terminal block make the installation and wiring of the SemiStat a quick job.

The attractive and durable ABS housing is available with either a white or chrome finish to complement the machine or location of installation.

SemiStat LED light modules utilize extremely bright light emitting diodes for the greatest attention-getting affect. Tri-Color SemiStat features red, amber and green light modules and Quad Color SemiStat features red, amber, green and blue light modules. Clear LED light modules are available separately. The sequence of the LED light modules can be easily changed to suit the application - just pop off the housing cover, disconnect the modules and then reconnect in the desired order. Light modules can be set to flashing or steady burning mode.

For further utility, each SemiStat is equipped with an integrated piezo sounder. SemiStat sounders produce 60dB at ten feet. A selection of two beep patterns is offered.

Models

Part # Description Ship Weight Net Weight
SCC-024QC SemiStat, 24VAC/VDC, quad color, chrome finish 1 lbs. 0.7 lbs. Add to Quote >
SCC-024TC SemiStat, 24VAC/VDC, tri color, chrome finish 1 lbs. 0.7 lbs. Add to Quote >

Accessories

Part # Description Ship Weight UPC
Not Applicable

Replacement Parts

Description Part #
PCB Assembly K2001958A Add to Quote >
LED Module, Amber K2001925A-01 Add to Quote >
LED Module, Blue K2001925A-02 Add to Quote >
LED Module, Red K2001925A Add to Quote >
LED Module, Green K2001925A-03 Add to Quote >
LED Module, Clear K2001925A-04 Add to Quote >

Agency


NO DOCUMENTS AVAILBLE

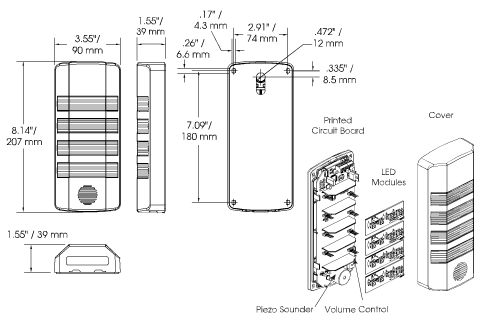

Diagrams

Specs

Mount Surface
Voltage 24VAC/VDC
Operating Current, Tri-Color** 150mA
Perating Current, Quad-Color** 175mA
Lamp Life 100,000 Hours
Light Source/Lamp Style LED Lamp
Decibel Output

60dB at 10 Feet

70dB at 1 Meter

Operating Temperature Min. 32 F
Operating Temperature Max. 140 F
Height 8.14 IN
Width 3.55 IN
Depth 1.55 IN
