Visual Signals

MicroStat® Status Indicator Optional Accessories

  • Wall mount bracket
  • Plug-in LED's in five colors - amber, blue, clear, green or red
  • Pipe extensions
  • Plug-in sound module, 24VDC and 120VAC
  • Tulip-style pipe-mount base
  • Flashers, 24VDC and 120VAC
  • UL and cUL Listed (MSLED, MSS)

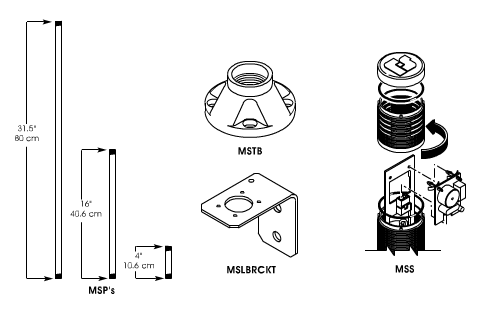

A variety of optional equipment is available for the MicroStat®.

MSLBRCKT - Wall mounting the MicroStat is simple with this basic bracket.

MSLED - Five plug-in LED's are available for the MicroStat: Amber, blue, clear, green or red. The MSLED replaces the lamp in any MSL light module. These surface mount printed circuit board lamp simulators represent the state of the art in LED technology. MSLED modules are UL Listed.

MSP - Some applications require that the status indicators be raised above the machine surface. Using powder coated steel pipe extensions helps improve the visibility of the MicroStat. Three different lengths are available for the MicroStat. They measure 4 inches (MSP-4), 16 inches (MSP-16) and 32 inches (MSP-32).

MSS - Adding sound to the MicroStat is simple with the plug-in Sound Module. The Sound Module produces 83 to 85dB at 10 feet. This compact piezo device replaces the lamp in the top position of any MicroStat. A slotted opaque lens protects the sound module circuit and permits the sound to be heard at maximum levels. Adding the sound module to the MicroStat changes the Type rating from 4X to Type 1. Sound modules are available in 24VDC and 120VAC operating voltages.

MSTB - The MicroStat base can be pipe-mounted or surface-mounted. When using the pipe extensions the Tulip Base is required for a true surface mount.

FLASHERS - Flashers for the MicroStat are available in 24VDC and 120VAC. Each flash at 75 fpm.

Models

Part # Description Ship Weight Net Weight
MSS-024 Sound module, Microstat®, 24DC 0.75 lbs. 0.25 lbs. Add to Quote >
MSS-120 Sound module, Microstat®, 120VAC 0.75 lbs. 0.25 lbs. Add to Quote >
MSLED-A LED lamp, Microstat®, 24VAC/DC, amber 0.55 lbs. 0.05 lbs. Add to Quote >
MSLED-B LED lamp, Microstat®, 24VAC/DC, blue 0.55 lbs. 0.05 lbs. Add to Quote >
MSLED-C LED lamp, Microstat®, 24VAC/DC, clear 0.55 lbs. 0.05 lbs. Add to Quote >
MSLED-G LED lamp, Microstat®, 24VAC/DC, green 0.55 lbs. 0.05 lbs. Add to Quote >
MSLED-R LED lamp, Microstat®, 24VAC/DC, red 0.55 lbs. 0.05 lbs. Add to Quote >
MSLBRCKT Microstat® mounting bracket 0.9 lbs. 0.4 lbs. Add to Quote >
MSTB Base, tulip, Microstat® 0.8 lbs. 0.3 lbs. Add to Quote >
MSP-4 Pipe, Microstat®, 4" 0.25 lbs.   Add to Quote >
MSP-16 Pipe, Microstat®, 16" 0.7 lbs.   Add to Quote >
MSP-32 Pipe, Microstat®, 32" 1 lbs.   Add to Quote >
K8285237A Flasher, 24VDC     Add to Quote >
K8285239A Flasher, 120VAC     Add to Quote >

Accessories

Part # Description Ship Weight
NOT APPLICABLE

Replacement Parts

Description Part #
NO PARTS FOUND

Agency

Listed By Underwriter's Laboratory (ULus)
Power circuit and motor-mounted apparatus NMTR_E185812.pdf
Listed By Underwriter's Laboratory For Use In Canada (cUL)
Power circuit and motor-mounted apparatus certified for Canada NMTR7_E185812.pdf

Diagrams

Specs

MSS
Operating Current

0.03 Amps @ 24VDC

0.04 Amps @ 120VAC

Decibel Output

93 to 95dB at 10 Feet

83 to 85dB at 1 Meter

Height 2 IN
Diameter 2.2 IN
MSLED
Operating Current 0.095 Amps @ 24VDC & 120VAC
Height 1.75 IN
Width 1.5 IN
MSLBRCKT
Height 3.45 IN
Width 2 IN
MSTB
Height 1.5 IN
Diameter 2.75 IN
