Visual Signals

LSB Litestak® Base

  • Available in 24VDC, 120VAC and 240VAC
  • Five lens colors
  • Surface mount and integrated 3/4-inch pipe mount
  • Indoor use only
  • Type 1 enclosure
  • Optional sounder available
  • UL and cUL Listed, CSA Certified

Federal Signal's Litestak® status indicator is a column of signal lights that indicate the status of a process or machine. The units may include up to five Light Modules (Model LSL) available in amber, blue, clear, green and red; or four light modules plus an optional Sound Module (Models LSS or LSH) to create a dual purpose audible/visual status indicator. The Sound Module always occupies the top position of a Litestak unit.

Litestak's lensing provides a 360º visual signal. Individual light modules may be set to either flash or burn steadily. The flasher is included with the 120VAC LSB model and sold separately for other voltages.

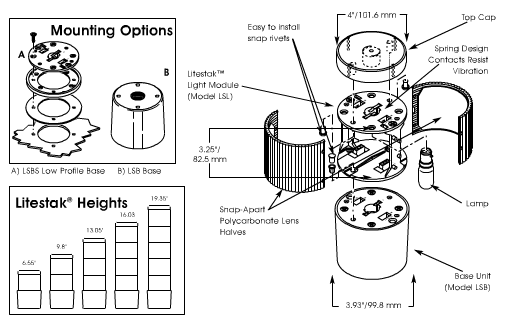

Each light module consists of two impact-resistant polycarbonate lens halves that snap apart to provide easy maintenance and interchangeability of colors.

Litestak units can be installed on a 3/4" pipe mount or surface mounted with the Model LSB Base. If low profile surface mounting is required, Model LSBS is available.

Litestak is UL and cUL listed, and CSA Certified for indoor use.

Multiple lens colors can communicate machine shutdown, shortage of materials, supervisor attention, etc. Ideal applications for the Litestak include assembly lines, instrument panels, workcells, etc. Federal Signal's Litestak is an economical device for increasing productivity in any manufacturing environment.

Special Considerations

  • Light modules and base modules are ordered separately
  • Light modules include lens and lamp
  • Base modules include cap kit
  • Specify model and voltage of base unit:
    • LSB for 3/4" pipe or surface mount
    • LSBS for low-profile surface mount
  • Specify model, voltage and colors of light modules
  • Specify optional sound module:
    • LiteStak Sound Module, Model LSS
    • LiteStak Horn, Model LSH

Models

Part # Description Ship Weight Net Weight
LSB-024-240 Litestak® base, 24-240VAC/DC 1 lbs. 0.75 lbs. Add to Quote >
LSB-120 Litestak® base, 120VAC 1 lbs. 0.75 lbs. Add to Quote >
LSBS Litestak® base, 24-240VAC/DC, surface mount 1 lbs. 0.75 lbs. Add to Quote >

Accessories

Part # Description Ship Weight
NOT APPLICABLE

Replacement Parts

Description Part #
NO PARTS FOUND

Agency

Listed By Underwriter's Laboratory (ULus)
Power circuit and motor-mounted apparatus UEES_E162485.pdf
Listed By Underwriter's Laboratory For Use In Canada (cUL)
Power circuit and motor-mounted apparatus certified for Canada UEES7_E162485.pdf
Certified by CSA International
Signal appliances, systems 4812_05_1253012.pdf
Signal appliances, systems 4812_05_LR5835_58.pdf

Diagrams

Specs

Mount

3/4" Pipe

Surface

Voltage

24-240VAC/VDC

120VAC 50/60Hz

Flash Rate/Minute 70, 120VAC 50/60Hz Only
Enclosure Rating Type 1
Operating Temperature Min. 0 F
Operating Temperature Max. 120 F
Height 3.3 IN
Diameter 3.93 IN
