Public Address

CTS Series Public Address High-Powered Amplifiers

  • Available in power ratings of 600, 1200, 2000, and 3000 watts
  • Two channels
  • Selectable dual or mono modes
  • In-rush limiting
  • Energy efficient
  • Integrated coding system
  • Dual input sensitivity switches
  • ETL Listed

The Federal Signal line of high-powered audio amplifiers provides the flexibility, quality, and performance required in an industrial public address system. AudioMaster® amplifiers are available in four different power ratings from 600 watts to 3000 watts. Each output channel can be independently configured to drive either the step-down transformers in a distributed "constant-voltage" loud-speaker system (70-volt mode) or a system of loudspeakers that do not require step-down transformers (8/4 ohm mode). Additionally, the Models CTS2000 and CTS3000 can operate in 100-volt mode. The 70-volt and 100-volt outputs eliminate the need for step-up transformers, which can create distortion and cause insertion loss.

The quality of AudioMaster amplifiers is apparent in the noise-free, crystal clear highs and lows they reproduce. The grounded bridge design of the CTS series provides for less distortion and thermal stress, and a simpler, more reliable power supply than found in typical stepped "linear" output systems.

AudioMaster amplifiers consume significantly less power per watt than typical central amplifiers and reduce long term operating costs. A unique soft-start circuit and a four second pseudo-random turn-on delay minimizes inrush currents and eliminates the need for power sequencers.

When combined with the AudioMaster AudioRouter and the complete line of AudioMaster Speakers, these high-powered amplifiers are a key component in a high performance, industrial public address system.

Models

Part # Description Shipping Weight Net Weight
CTS600-120 OBSOLETE
CTS1200-120 OBSOLETE
CTS2000-120 OBSOLETE
CTS3000-120 OBSOLETE

Accessories

Part # Description Ship Weight
NOT APPLICABLE

Replacement Parts

Description Part #
NO PARTS FOUND

Agency


NO DOCUMENTS FOUND

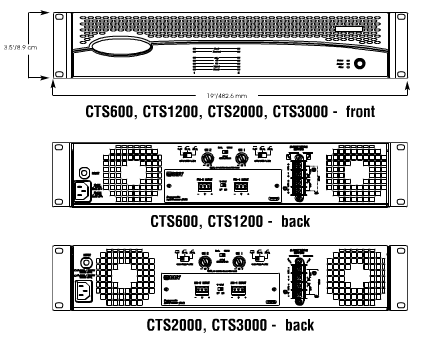

Diagrams

Specs

Voltage 120VAC
Frequency Response +/- 0.25dB from 20Hz to 20Khz at 1 watt
Output Power

CTS600, 600-watts

CTS1200, 1200-watts

CTS2000, 2000-watts

CTS3000, 3000-watts

Height 3.5 IN
Width 19 IN
Depth 14.21 IN
