Public Address
AMSS-25 AudioMaster® Public Address Flush and Swivel Mount 25 Watt Speaker
- 8 ohm
- 25 watt
- Surface and flush mount
- Type 4X, IP66 enclosure
- UL Listed
The Federal Signal Models AMSF-25 and AMSS-25 are heavy-duty, 8-ohm speakers for use in public address or paging systems. These speakers are designed to reproduce full-range voice communication. Both speakers are constructed of spun aluminum. The speaker wiring connections are enclosed in a dust-tight and moisture-proof, gasketed rear cover. All external surfaces are sealed with a metallic gray powder coat paint.
The AMSF-25 is a flush mount unit that is ideal for use in walls and cabinets. The AMSS-25 has an adjustable mounting bracket that pivots in a 90º arc for attaching to walls, cabinets or vehicle roofs. These speakers are appropriate for marine applications.
The AMSF-25 and the AMSS-25 can be used with the AudioMaster® CTS series amplifiers and the AudioRouter™ to complete an industrial grade public address system.
Models
| Part # | Description | Shipping Weight | Net Weight | |
|---|---|---|---|---|
| AMSS-25 | Speaker, 25 watt, swivel mount, weatherproof | 6 lbs. | 5 lbs. | Add to Quote > |
Accessories
| Part # | Description | Ship Weight | |
|---|---|---|---|
| NOT APPLICABLE | |||

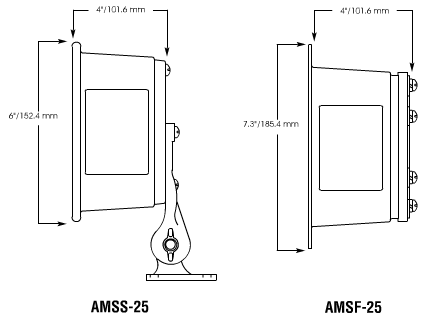

Diagrams
Specs
| Mount | Surface |
|---|---|
| Power Handling | 25 Watt |
| Frequency Response | 800 - 5000Hz |
| Impedance | 8 ohm |
| Beam Width | 90º |
| Decibel Output | 107dB at 10 Feet 117dB at 1 Meter |
| Enclosure Rating | Type 4X |
| Ingress Protection (IP) | IP66 |
| Operating Temperature Min. | -50 F |
| Operating Temperature Max. | 150 F |
| Depth | 4 IN |
| Diameter | 6 IN |
