Outdoor Warning

DSA Directional Speaker Array

  • Overcomes ambient noise of industrial environments
  • Provides maximum speech recognition and tone reproduction
  • Produces 111dBc to 121dBc at 100 ft
  • Three mounting kits available
  • UL and cUL Listed

Federal Signal's Model DSA Directional Speaker Array provides excellent voice and tone reproduction and is ideal for overcoming high levels of industrial noise.

Design flexibility allows the user to combine up to four speaker arrays; each array will hold from two to six re-entrant speakers. Speakers have a 70º horizontal angle of dispersion, accommodating specific sound output patterns. (When vertical stacks are placed 90º apart, a 180º horizontal coverage is possible.)

The Model DSA mounting kits allow for multiple speaker arrays to be mounted on the same pole at 90º increments. The downward tilt can be adjusted by 15º. The mounting flexibility of this system allows the speakers to be pointed directly at a targeted area for more concentrated sound output.

A DSA consists of a corrosion resistant aluminum frame with fiberglass projectors and stainless steel mounting hardware. Each speaker contains a high-efficiency 100 watt driver.

Amplification, tone generation and signal timing are provided by the Model UV controller, purchased separately.

Ideal for outdoor industrial plant warning, the Model DSA speaker array allows sound coverage to be customized to each site, preventing wasted sound in and around the plant. The Model DSA provides better speech intelligibility within a coverage zone than omni-directional speaker arrays.

Special Considerations

  • The DSA speaker array is used in conjunction with the UV controller.  The UV houses the amplifiers that drive the DSA speaker array.  Each DSA is made up of individual 100 watt speakers.  For Example:  A DSA4 has four 100-watt speakers.
  • Multiple DSA arrays can be controlled by a single UV as long as the total wattage meets or exceeds the total wattage required by the DSAs.  The total watts required is the sum of all 100-watt speakers from each DSA.
  • Call us for assistance in specifying an outdoor warning system

Models

Part # Description   Net Weight
DSA2 Electronic Speaker Array, Two Speakers   43 lbs. Add to Quote >
DSA3 Electronic Speaker Array, Three Speakers   80 lbs. Add to Quote >
DSA4 Electronic Speaker Array, Four Speakers   95 lbs. Add to Quote >
DSA5 Electronic Speaker Array, Five Speakers   110 lbs. Add to Quote >
DSA6 Electronic Speaker Array, Six Speakers   125 lbs. Add to Quote >

Accessories

Part # Description
DSAMK1 One vertical support wall mount   Add to Quote >
DSAMK2 Two vertical supports 180° apart on pole   Add to Quote >
DSAMK4 Four vertical supports 90° or 180° apart, pole mounted   Add to Quote >

Replacement Parts

Description Part #
Driver, 100 watt 8570063A Add to Quote >

Agency

Listed By Underwriter's Laboratory (ULus)
NO DOCUMENTS FOUND

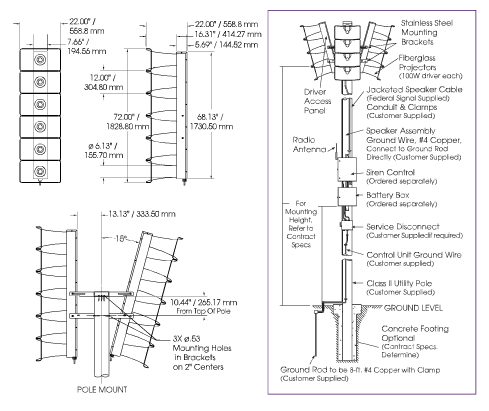

Diagrams

Specs

Color Black projectors with off-white housing
Paint TGIC - Polyester Powder Coat, highly corrosion resistant
Frequency Response 300Hz to 4000Hz
Model No. of 100W Speakers Total Watts Decibels @ 100 ft Effective Range
DSA2 2 200 111 1,700 ft
DSA3 3 300 115 2,200 ft
DSA4 4 400 117 2,600 ft
DSA5 5 500 119 3,000 ft
DSA6 6 600 121 3,400 ft

Mounting Kits

Model Mounting Configuration
DSAMK1 One vertical support wall mount
DSAMK2 Two vertical supports 180° apart on pol
DSAMK4 Four vertical supports 90° or 180° apart, pole mounted
