Initiating

PS Series Push Button Stations

  • "Evacuation" and "Emergency" stations available
  • Quick reset
  • Cover with alarm discourages tampering
  • ADA Compliant
  • UL and cUL Listed, CSFM Approved

These multi-purpose, initiating devices cover a wide range of industrial and commercial applications. The Federal Signal push-button stations function like a traditional fire alarm "pull station", providing a simple contact closure to activate emergency equipment, audible and visual signals and alarm panels.

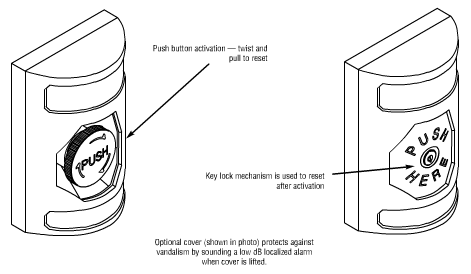

The push button stations are available in two colors - Red or Yellow. The red "Emergency" and yellow "Evacuation" units have a "Push and Turn" reset button.

Each unit is available with or without a tamper-resistant polycarbonate cover. Covered units work to protect against physical damage to the station and to prevent false alarms without restricting use in emergency situations. When the cover is lifted to gain access to the alarm, a piercing tone sounds, calling immediate attention to the area. The piezo horn is quiet once the cover is closed. Power to the piezo alarm is provided by a 9VDC battery (included). The sounder cover mounts easily over the station with four anchor screws.

The terminal block provides easy installation and maintenance. Units mount on existing single-gang electrical boxes or 4" x 4" electrical boxes with plaster ring adapters (customer supplied).

Units are UL and cUL Listed, meeting Type 3R specifications for outdoor use with the cover and gasket. They are also ADA Compliant (requiring less than five foot pounds for activation).

Contact ratings for the Push Button Stations are 600VAC @ 3 amps and 250VDC @ 1 amp.

Models

Part # Description Ship Weight Net Weight
PSEV-Y Yellow station with push & turn reset button - "EVACUATION" 4.2 lbs. 3.3 lbs. Add to Quote >
PSEM-R Red station with push & turn reset button - "EMERGENCY"  4.2 lbs. 3.3 lbs. Add to Quote >
PSEVSC-Y Yellow station with push & turn reset button & sounder cover - "EVACUATION" 4.2 lbs. 3.3 lbs. Add to Quote >
PSEMSC-R Red station with push & turn reset button & sounder cover - "EMERGENCY" 4.2 lbs. 3.3 lbs. Add to Quote >

Accessories

Part # Description Ship Weight
PSCE-Y Cover, pull station, Evacuation, yellow 0.4 lbs. Add to Quote >
PSCE-R Cover, pull station, Emergency, red 0.4 lbs. Add to Quote >

Replacement Parts

Description Part #
Terminal Block, Normally Open K229277A Add to Quote >
Terminal Block, Normally Closed K229277A-01 Add to Quote >

Agency

Listed By Underwriter's Laboratory (ULus)
Signal appliances, miscellaneous UEHX_E94581.pdf
Boxes, non-coded UNIU_S4875.pdf
Listed By Underwriter's Laboratory For Use In Canada (cUL)
Signal appliances, miscellaneous certified for Canada UEHX7_E94581.pdf
Boxes, non-coded certified for Canada UNIU7_S4875.pdf
Listed By California State Fire Marshall (CSFM)
Boxes/Pull Stations 7150_0811_141.pdf

Diagrams

Specs

Mount 4" Square Electrical Box
Enclosure Rating Type 3R when used with Cover and Gasket
Batteries Required 9 Volt (included)
Relay Ratings 600VAC at 3 Amps; 250VDC at 1 Amp
Height

Without cover-4.9 IN

With cover-8.4 IN

Width

Without cover-3.25 IN

With cover-5.5 IN

Depth

Without cover-2 IN

With cover-2.4 IN
