Audible Devices

SST-MV Electronic Siren

  • Multi-voltage design accepts 24VDC and 120/240VAC
  • Produces one of four tones — wail, yelp, horn and temporal slow whoop
  • Produces 109.5-111dBa @ 10'
  • Omni-directional swivel mount
  • Type 3R enclosure (with WB backbox)
  • UL and cUL Listed

Federal Signal's SST-MV is an electronic siren capable of producing one of four high decibel tone outputs from the same unit.

The Model SST-MV features internal amplification and the tone circuitry to produce four different tones. The user selects from the wail, yelp, horn or temporal slow whoop tone by reconfiguring internal jumpers.

The SST-MV operates on 24VDC, 120VAC or 240VAC. The Type 3R housing is molded from impact-resistant ASA (acrylic-styrene-acrylonitrile) plastic, making it resistant to ultra-violet light and ideal for indoor or outdoor use.

The omni-directional swivel mount system allows the output to be pointed anywhere within a 360º half-sphere.

This electronic siren is UL and cUL Listed.

The Model SST-MV can be used as a stand-alone, high output, audible warning device in any application where voice paging is not required.

Typical applications include emergency warning, start and dismissal, fire alarm, general alarm and evacuation.

Federal Signal's Model SST-MV Electronic Siren is an economical multi-tone siren that is designed to hold up to the rigors of corrosive environments.

Models

Part # Description Ship Weight Net Weight
SST-MV Siren, electronic, multi-voltage 5.2 lbs. 4.4 lbs. Add to Quote >

Accessories

Part # Description Ship Weight
WB Box, weatherproof, gray 1.15 lbs. Add to Quote >

Replacement Parts

Description Part #
PC Board Assembly K2001177D-01 Add to Quote >
Connector, 4-Position K140340B Add to Quote >
Adapter (Beige) K8476121A Add to Quote >
Adapter (Grey) K8476121A-04 Add to Quote >
Gasket K8476122A Add to Quote >

Agency

Listed By Underwriter's Laboratory (ULus)
Audible signal appliance, general signal UCST_E4813.pdf
Listed By Underwriter's Laboratory For Use In Canada (cUL)
Audible signal appliance, general signal, certified for Canada UCST7_E4813.pdf

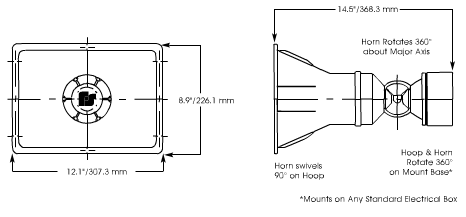

Diagrams

Specs

Voltage

24VDC

120VAC

240VAC

Mount Omni-Directional Swivel
Operating Current

600mA at 24VDC

210mA at 120VAC

120mA at 240VAC

Operating Temperature Min. -31 F
Operating Temperature Max. 161 F
Decibel Output

Wail - 109.5 at 10Ft, 119.5 at 1m

Yelp - 111 at 10Ft, 121 at 1m

Horn - 107 at 10Ft, 117 at 1m

Temporal Slow Whoop - 111 at 10Ft, 121 at 1m

Tones Wail, Yelp, Horn and Temporal Slow Whoop
Enclosure Rating Type 3R when used with Weatherproof Backbox
Height 14.5 IN
Width 12.1 IN
Depth 8.9 IN
