Audible Devices

6H Air Horn

  • Available in 120VAC
  • Wide variety of tones and sizes
  • For indoor/outdoor use
  • Type 4X enclosure

Federal Signal offers a line of air horns in a variety of tones and sizes for the industrial marketplace. High, medium and low tones are available which provides a wide range of frequencies and high sound output.

Federal Signal air horns feature a one-piece, cast aluminum alloy housing which has been treated to provide corrosion resistance. The horns include specialized long-lasting stainless steel diaphragms. These precisely machined horns will yield peak performance at proper working air pressures and are virtually indestructible. The 3- and 4-inch horns (Models 3H, 4H, 4M) have threaded female pipe connections. The Model 6H features flanges for additional support.

Federal Signal air horns operate with 20 to 150 p.s.i., (pounds per square inch) but they are tuned for 80 to 90 p.s.i. operation. The horn frequency (pitch) depends on both the diameter and length of the projector. Decibel output at 10 feet is 122dBa (132dBa @ 1m).

The horns require a 120VAC Federal Signal air valve. Use Model EVS with the 3H, Model EVM with the 4M and Model EVL with the 6H.

Airhorns can be used indoors, outdoors, or anywhere compressed air can be provided.

Federal Signal Air Horns are the loudest audible signals offered for indoor applications.

They are not subject to sparking and are ideal for hazardous locations (the valves need to be located in a non-hazardous location).

Models

Part # Description Ship Weight Net Weight
6H Air horn, 6", high pitch 11.4 lbs. 9.7 lbs. Add to Quote >

Accessories

Part # Description Ship Weight
EVL-120 Air valve, 6" air horns, 120VAC 2 lbs. Add to Quote >

Replacement Parts

Description Part #
6H Diaphragm K8271A077 Add to Quote >

Agency


NO DOCUMENTS FOUND

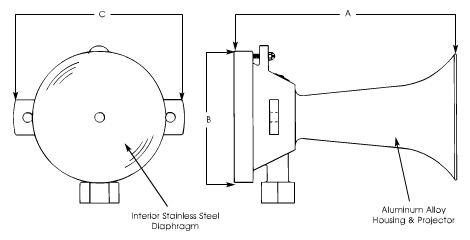

Diagrams

Specs

Voltage 120VAC
Mount 3/4" Pipe
Decibel Output

122 at 10 Feet

132 at 1 Meter

Air Consumption (Cubic Ft. Per Second) 0.45
Valve Model To Spec.** EVL
Frequency Response 295Hz
Enclosure Rating Type 4X
Height 9.5 IN
Width 6.5 IN
Length 12.38 IN
Diaphram Diameter 5 IN
Pipe Size 0.75 IN
**120VAC valves sold separately
