Audible Devices

52 Resonating Horn

  • Available in 24VDC
  • Withstands extreme outdoor conditions
  • Produces 114dBa @ 10' (124dBa @ 1m)
  • Surface mount with flanges
  • Type 4X enclosure

The Federal Signal Model 52 resonating horn produces 114dBa @ 10 feet (124dBa @ 1m) with a 1,000 foot range. It is capable of penetrating high ambient noise levels. Being electrically-activated, the Model 52 does not require an air compressor for operation. The Model 52 is able to withstand the shocks, vibrations, dust and atmospheric conditions encountered in off-road use. The operating temperature range is -40ºF to 185ºF (-40ºC to 85ºC).

Rubber gaskets and a power connector make the Model 52 completely watertight. The projector and internal parts are made of zinc-coated steel or stainless steel to resist corrosion; the exterior is sealed with gray enamel paint. The housing is die-cast aluminum. Tied and adhesive-bonded internal wiring helps prevent electrical shorts, wire breakage, and loose connections. The Model 52 is available in 24VDC. It's 18-32V operating range allows for voltage inconsistencies. The Model 52 has a duty cycle of five minutes on and five minutes off.

Federal Signal's Model 52 resonating horn is specifically designed for off-road vehicles. It provides the very loud sound for which an air-horn is usually required, but without the need for an expensive compressor.

Used by major manufacturers of construction equipment, Model 52 resonating horns suit the warning needs of any off-road vehicle working in a high noise environment, including excavators, backhoes, compactors (steamrollers), loaders, tractors, bulldozers, trenchers, and scrapers.

Models

Part # Description Ship Weight Net Weight
52-024-1 Horn, 24VDC, resonating 10 lbs. 9 lbs. Add to Quote >

Accessories

Part # Description Ship Weight
NOT APPLICABLE

Replacement Parts

Description Part #
Projector, Straight K8233C081B-02 Add to Quote >

Agency


NO DOCUMENTS FOUND

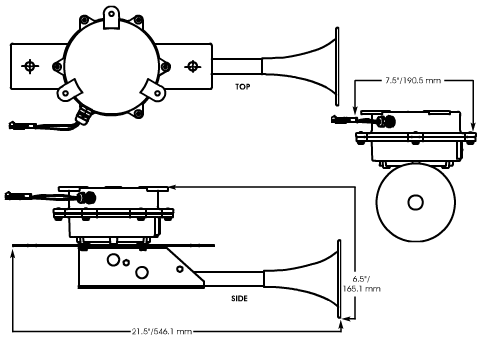

Diagrams

Specs

Voltage 24VDC
Mount Surface
Operating Current 4.0 Amps
Operating Temperature Min. -40 F
Operating Temperature Max. 185 F
Decibel Output

114 at 10 Feet

124 at 1 Meter

Duty Cycle Five minutes on, five minutes off.
Enclosure Rating Type 4X
Height 6.5 IN
Width 7.5 IN
Length 21.5 IN
