Audible Devices
450 Vibratone Horn
- Range of up to 200 feet
- Coded or sustained tones
- 12, 24, 125 and 250VDC
- Produces 99dBa @ 10'
- Type 4X when installed with Panel Mount Gasket Kit or Weatherproof Backbox (Model WB); Type 4X and Type 12 when installed with Surface Mount Trim Ring (Model TR)
- UL and cUL Listed, CSA Certified, and FM Approved
The Models 350 and 450 Vibratone® Horns produce a very loud horn tone by the electro-mechanical vibration of a diaphragm. These horns are capable of reproducing coded blasts or sustained tones through the use of a number of control devices from a push button to a PLC. Federal Signal's Vibratone horns are excellent for general alarm, start and dismissal, coded paging, and process control signaling in areas of high ambient noise levels.
The Vibratone Model 350 is available in AC voltages; 12VAC, 24VAC, 120VAC and 240VAC. The Model 350 produces 100dBa @ 10 feet, except the 12VAC model, which produces 94dBa @ 10 feet.
The Model 450 is available in DC voltages; 12VDC, 24VDC, 125VDC and 250VDC. The Model 450 produces 99dBa @ 10 feet.
Vibratone mounting options provide for surface, flush or semi-flush mounting on walls, panels, in cabinets, on 4-inch square outlet boxes, or in concrete and deep wall constructions.
Installed on the front of a Vibratone Horn, the optional Model PR Projector or Model PR2 Double Projector direct sound output straight ahead or to the sides, optimizing sound output for long, narrow rooms or corridors.
Vibratone horns are UL and cUL Listed, CSA Certified and FM Approved. They are designed and approved for use in Type 4X applications when installed with the Panel Mount Gasket Kit or Weatherproof Backbox (Model WB). They are approved for Type 4X and Type 12 applications when installed with the Surface Mount Trim Ring (Model TR).
Each Vibratone horn is enclosed in a zinc die-cast housing and sealed with grey powder-coat paint. The Model 350 features a stainless steel diaphragm. The Model 450 utilizes an aluminum allow diaphragm and heavy duty contacts. The rugged construction of the Vibratone horns resists vandalism and the effects of harsh industrial environments.
Compact size, loud output and heavy-duty construction make the Vibratone horns ideal for industrial and institutional signaling applications.
Models
| Part # | Description | Ship Weight | Net Weight | |
|---|---|---|---|---|
| 450-012-30 | Horn, 12VDC | 1.5 lbs. | 1.4 lbs. | Add to Quote > |
| 450-012-31 | Horn, 12VDC | 1.5 lbs. | 1.4 lbs. | Add to Quote > |
| 450-024-31 | Horn, 24VDC | 1.5 lbs. | 1.4 lbs. | Add to Quote > |
| 450-125-30 | Horn, 125VDC | 1.5 lbs. | 1.4 lbs. | Add to Quote > |
| 450-250-30 | Horn, 250VDC | 1.5 lbs. | 1.4 lbs. | Add to Quote > |
Accessories
| Part # | Description | Ship Weight | |
|---|---|---|---|
| FB | Box, wall mount | 1.7 lbs. | Add to Quote > |
| FBL | Deep wall box for flush mount | 1.8 lbs. | Add to Quote > |
| FG | Grille, flush mount | 0.75 lbs. | Add to Quote > |
| K8435666A | Panel Mount Gasket Kit | 1 lbs. | Add to Quote > |
| PR | Projector, single, gray | 1.15 lbs. | Add to Quote > |
| PR2 | Projector, double, gray | 1.7 lbs. | Add to Quote > |
| SF | Plate, semi-flush, gray | 0.6 lbs. | Add to Quote > |
| TR | Mounting trim ring for 350 and 450 horns | 1 lbs. | Add to Quote > |
| WB | Box, weatherproof, gray | 1.15 lbs. | Add to Quote > |
Replacement Parts
| Description | Part # | |
|---|---|---|
| Panel Mount Gasket Kit | K8435666A | Add to Quote > |
| Coil, 120VAC | KFC1516C | Add to Quote > |
| Volume Control Kit | K8435663B | Add to Quote > |
| Gasket, WB | K8435696A | Add to Quote > |
Agency
| Listed By Underwriter's Laboratory (ULus) | |
|---|---|
| Audible signal appliance, general signal | UCST_E4813.pdf |
| Audible signal appliances | ULSZ_E4813.pdf |
| Mouting kit 8435666 or model WB back box | 240298_E4813.pdf |
| Listed By Underwriter's Laboratory For Use In Canada (cUL) | |
|---|---|
| Audible signal appliance, general signal, certified for Canada | UCST7_E4813.pdf |
| Certified by CSA International | |
|---|---|
| Signal appliances, audible | 4812_04_LR5835_30.pdf |
| Factory Mutual (FM) | |
|---|---|
| FM Approval Guide | FM_Approval_Guide.pdf |
Specs
| Voltage | 12VDC 24VDC 125VDC 250VDC |
|---|---|
| Mount | Surface Panel 4" Square Electrical Box |
| Operating Current | 0.50 Amps at 12VDC 0.25 Amps at 24VDC 0.05 Amps at 125VDC 0.03 Amps at 250VDC |
| Decibel Output | 99 at 10 Feet
|
| Operating Temperature Min. | -65 F |
| Operating Temperature Max. | 150 F |
| Duty Cycle | Not rated for continuous duty. |
| Enclosure Rating | Type 4X when installed with Panel Mount Gasket Kit or Weatherproof Backbox Type 4X and Type 12 when installed with Surface Mount Trim Ring |

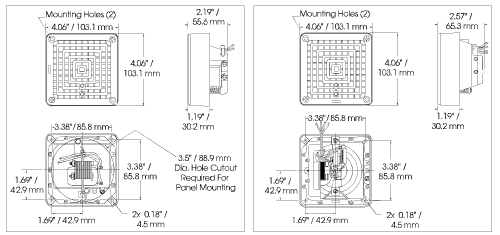

| Height | 4 IN |
| Width | 4 IN |
| Length | 2.5 IN |
